[Electro]

Here is how the Mod looks now.

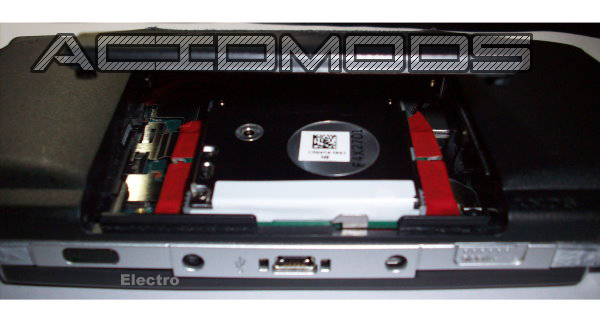

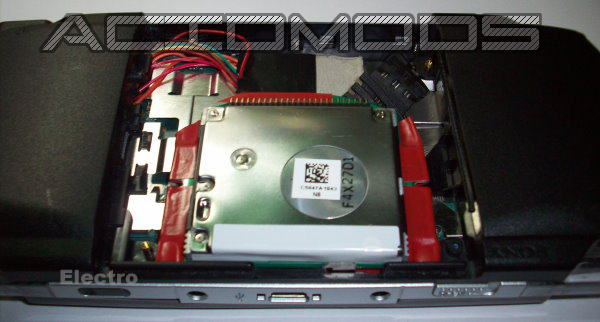

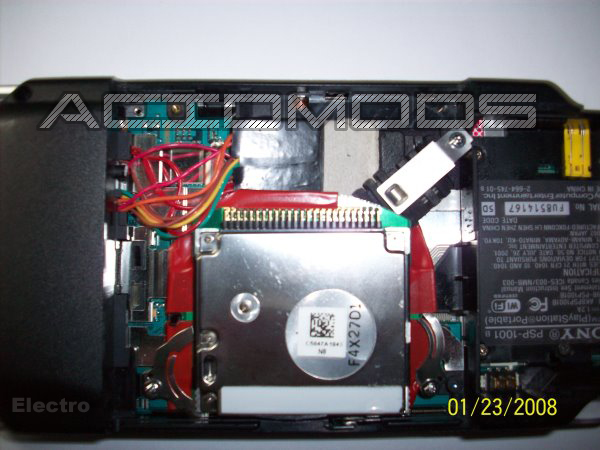

I secured the HD so it will no longer move:

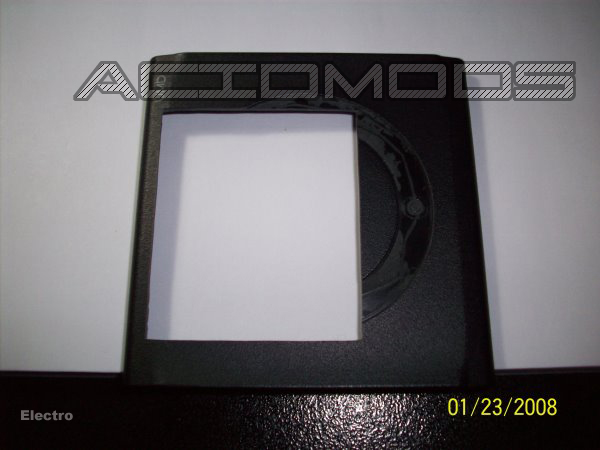

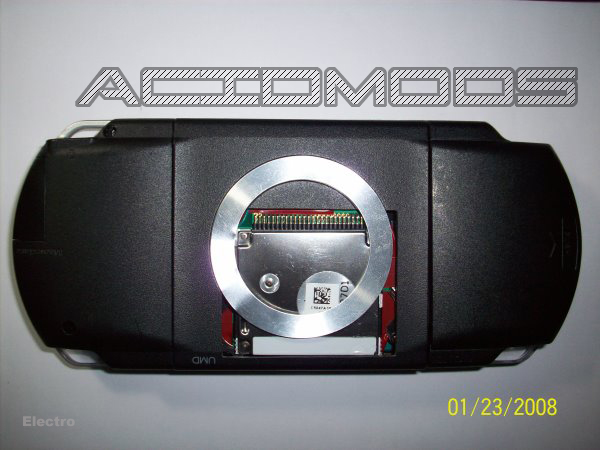

I made a hole for the HD to let the air get inside,  looks cool I think, and this will help it from overheating:

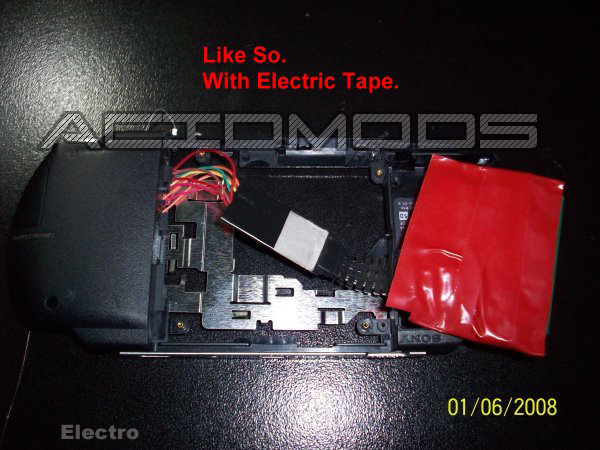

The Mod how it is now:



Some of U have been asking for a video of this MOD so here it is:

http://www.youtube.com/watch?v=zlaY5-9ty7A

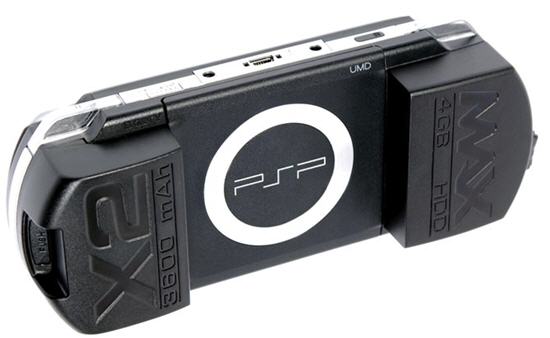

U know this 1:




Datel states that you can use a card up to 8GB.

So I guess U should be able to use 1 of these:


I had to Take the UMD Drive out but it's worth it.
I never really Used the darn thing anyway.
Feels a bit lighter now 2.

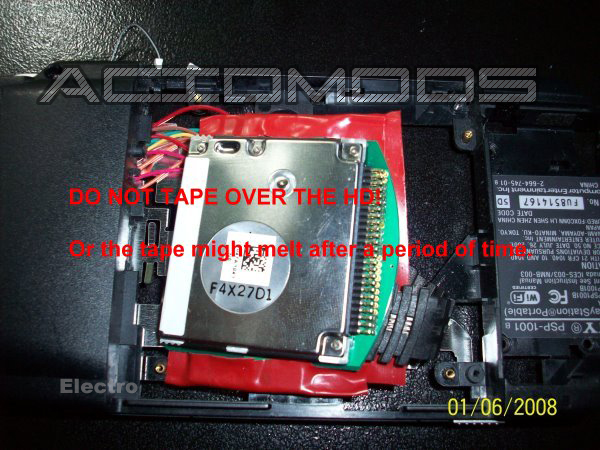

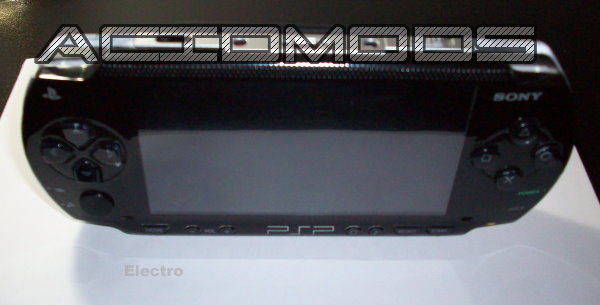

Here is the Finished MOD:


There is some room left over that can be used for some other smaller MOD.
Like the Internal Go Cam.





Compare this with the above:

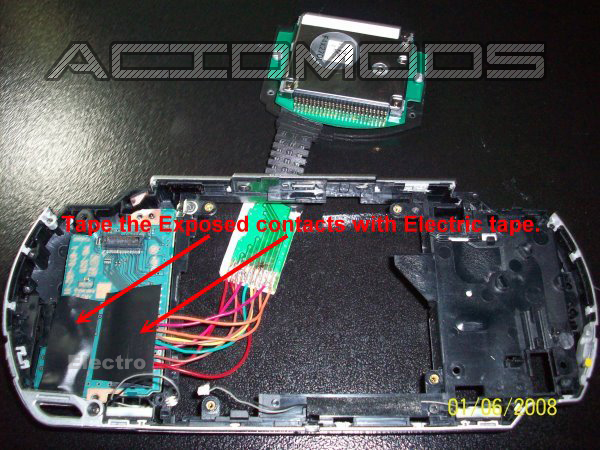

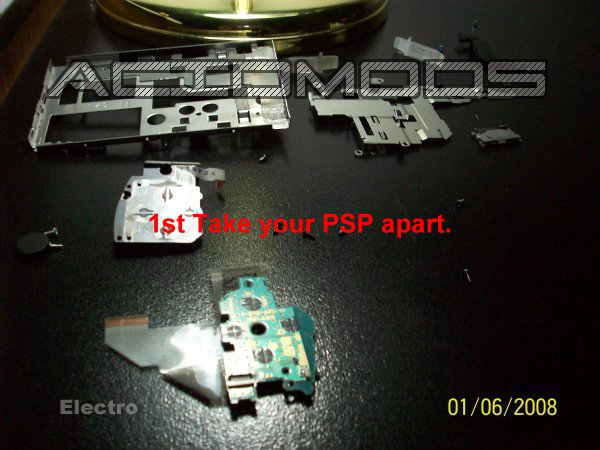

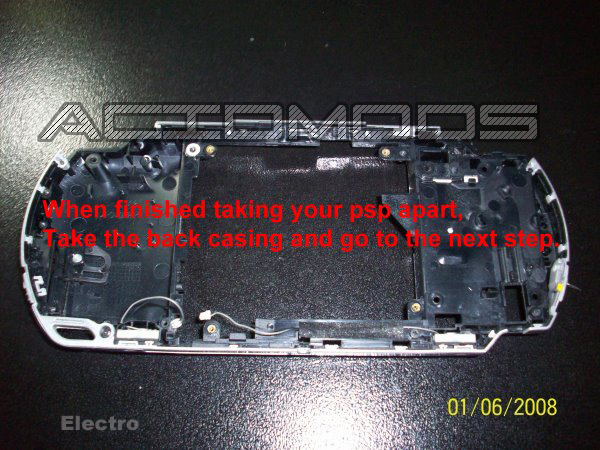

TUTORIAL:

U WILL NEED TO TAKE THE UMD DRIVE OUT!!!

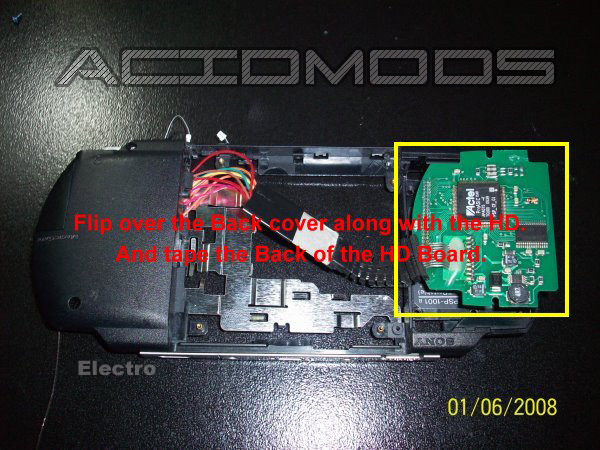

And take the Datel HD apart:

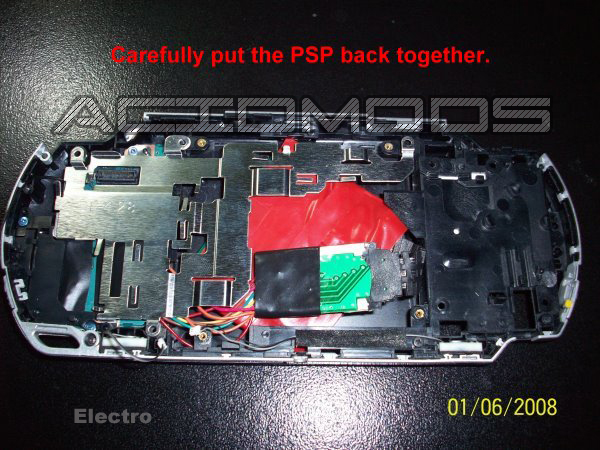

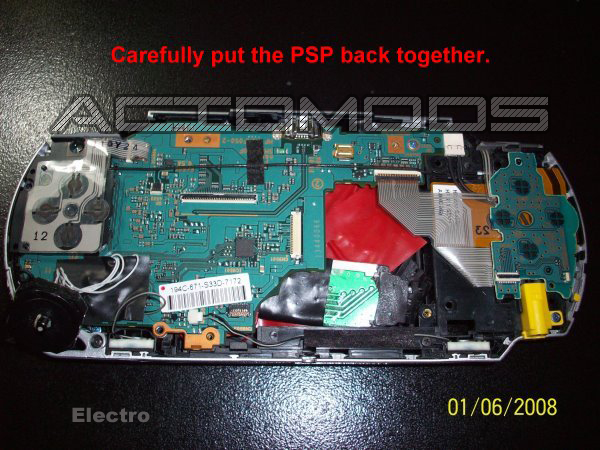

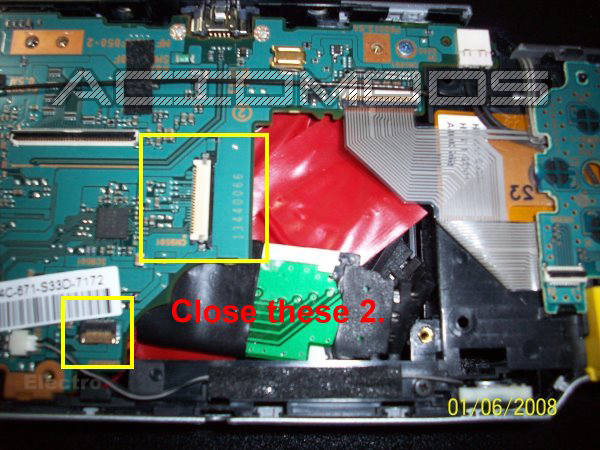

When U Put the PSP Together Turn it on and Enjoy.

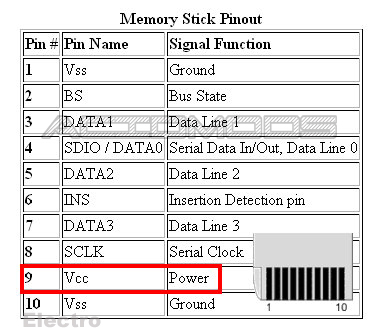

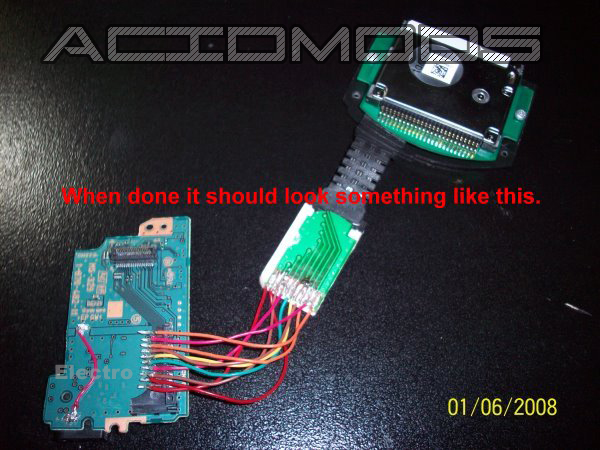

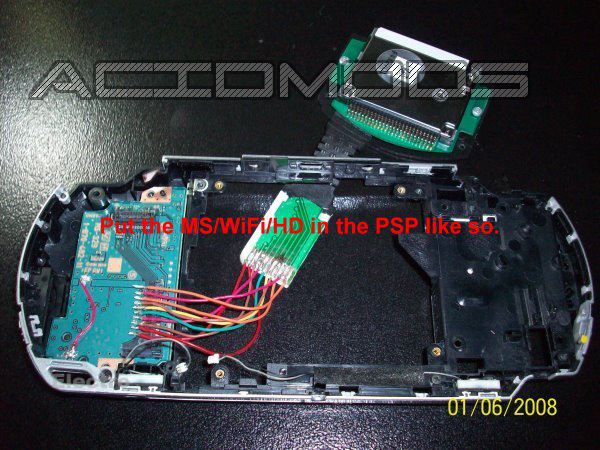

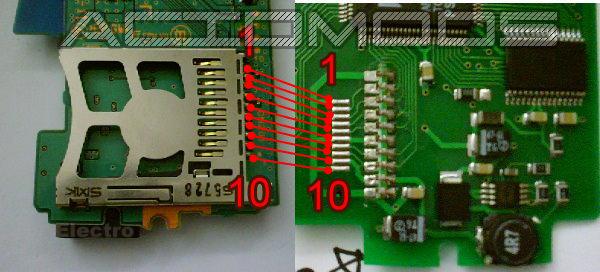

Here is the picture for the pinouts for the MS/WiFi board and the Datel board.



And U need to share the 2nd pin (9th pin by the MS Pinout diagram) between the MS and the Datel HD.
